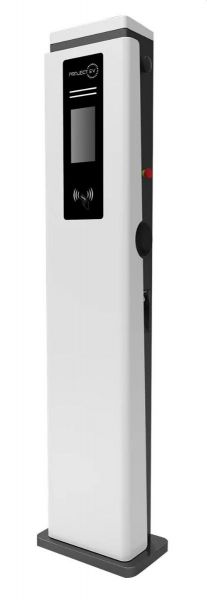

EV Charging Station Phase 1

Input & Output

• Input voltage 230VAC
• Input frequency 50Hz
• Output voltage 230V AC
• Max. output power 7.3KW (per socket)
• Max. output current 32A (per socket)
• Charging interface typeIEC 62196-2, Type ll
• Connector Socket
• Number of connection 2

Protection

• Over voltage protection: Yes
• Under voltage protection: Yes
• Over load protection: Yes
• Short circuit protection: Yes
• Earth leakage protection: Yes
• Over-temp protection: Yes
• Surge protection: Yes

Function and Accessory

• Ethernet/WIFI/4G Yes/Yes/Opt
• Payment support RFID/QR(standard)
• LCD Yes
• RCD Type A + 6mA DC fault current protection (Equivalent to Type B)
• LED indicator Yes
• Integrated smart meter Opt
• Emergency stop button Yes
• RFID Yes
• Ground mounting plate (EV-GMEVA-D) Opt
